Description
xFEATURES:

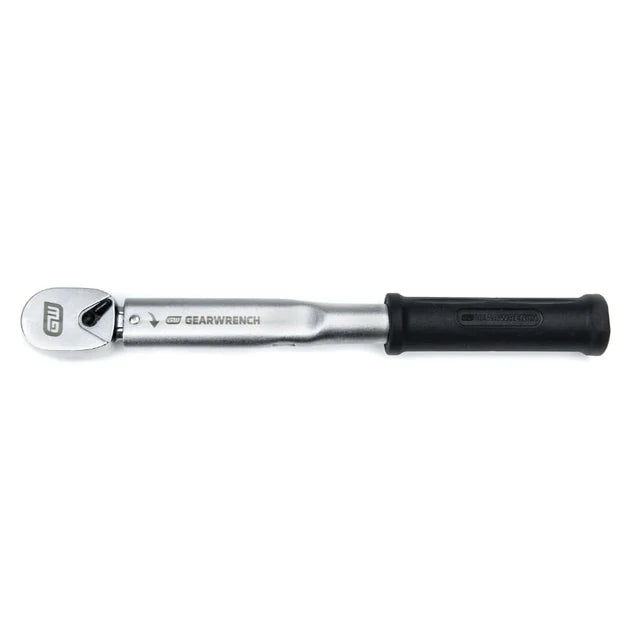

• 36-Tooth ratchet mechanism with a 10° swing arc allows you to turn fasteners in spaces other tools can't fit
• Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability
• Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application
• Pull adjustment collar feature allows you to make quick and easy torque setting changes
• Scale markings are highly visible and easy to read
• Torque settings must be preset by making an internal adjustment and using a torque tester to verify the torque value
• Meets or exceeds ISO 6789 and ASME B107.300-2010 standards and specifications
• 1 Year limited warranty; calibration accuracy warrantied for 90 days
SPECIFICATIONS:
• ASME Specification: B107.300
• Case Color: Black
• Drive Tang Size: 1/4 in
• Drive Type: Square
• Finish: Satin Chrome
• Head Thickness: 0.77 in
• Head Thickness Less Tang: 0.472 in
• Head Width: 0.98 in
• Included Storage: Blow Mold Case
• Material: Alloy Steel
• Max Torque (Alt Scale): 44 in/lb
• Max Torque (Primary Scale): 5 Nm
• Min Torque (Alt Scale): 9 in/lb
• Min Torque (Primary Scale): 1 Nm
• Tether Ready: No
• Tooth Count: 36
• Torque Accuracy (20-100% of Full Range): +/-3% Clockwise
• Warranty: 90 Day Calibration/1 Year Parts
