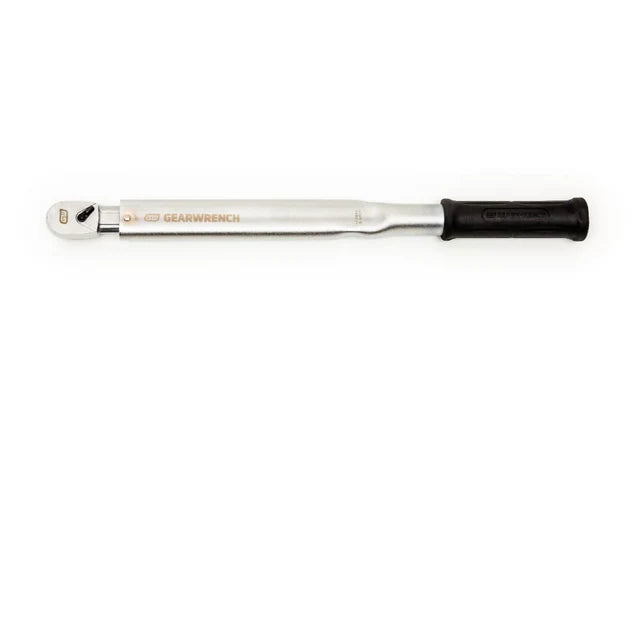

xGearWrench 85164 Description
The GEARWRENCH family of torque wrenches and torque products offer the latest innovations in torque measurement. The line includes micrometer, tire shop, beam, and electronic torque wrenches and torque multipliers. The micrometer wrenches come available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drive sizes. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended specifically for checking wheel lug nuts and are available in 3/8" and 1/2" drive sizes. The electronic torque wrenches ensure a precise fastener torque level and are available in either 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow you to complete any job where accurate torque is required.
GearWrench 85164 Features
- 36-Tooth ratchet mechanism with a 10° swing arc allows you to turn fasteners in spaces other tools can't fit
- Torque accuracy of +/- 3% CW between 20% and 100% of wrench capability
- Thin profile, sealed, teardrop head design offers improved access and durability for highly effective application
- Pull adjustment collar feature allows you to make quick and easy torque setting changes
- Scale markings are highly visible and easy to read
- Torque settings must be preset by making an internal adjustment and using a torque tester to verify the torque value
- Meets or exceeds ISO 6789 and ASME B107.300-2010 standards and specifications
- 1 Year limited warranty; calibration accuracy warrantied for 90 days
GearWrench 85164 Specifications
| ASME Specification | B107.300 |
| Case Color | Black |
| Drive Tang Size | 1/2 in |
| Drive Type | Square |
| Finish | Satin Chrome |
| Head Thickness | 1.11 in |
| Head Thickness Less Tang | 0.5 in |
| Head Width | 1.25 in |
| Included Storage | Blow Mold Case |
| Material | Alloy Steel |
| Max Torque (Alt Scale) | 148 ft/lb |
| Max Torque (Primary Scale) | 200 Nm |
| Min Torque (Alt Scale) | 30 ft/lb |
| Min Torque (Primary Scale) | 40 Nm |
| Tether Ready | No |
| Tooth Count | 36 |
| Torque Accuracy (20-100% of Full Range) | +/-3% Clockwise |
| Warranty | 90 Day Calibration/1 Year Parts |
